PERMANENT MAGNETIC SEPARATOR
Product Display
PRODUCT DATA
Technical Data of RCYB Series Magnetic Separator
| Model | Belt width Adaptive (mm) | Suspension Height Rated (mm) | Belt Velocity (m/s) | Material Thickness (mm) | Overall Dimensions (L×W×H)mm | ||
| RCYB-5 | 500 | 150 | 4.5 | 90 | 500*350*260 | ||
| RCYB-6.5 | 650 | 200 | 4.5 | 150 | 650*600*300 | ||
| RCYB-8 | 800 | 250 | 4.5 | 200 | 950*950*380 | ||
| RCYB-10 | 1000 | 300 | 4.5 | 250 | 1100*1000*380 | ||
| RCYB-12 | 1200 | 350 | 4.5 | 300 | 1300*1340*420 | ||
| RCYB-14 | 1400 | 400 | 4.5 | 350 | 1500*1500*420 | ||
Technical Data of RCYD Series Magnetic Separator
| Model | Belt width Adaptive (mm) | Suspension Height Rated (mm) | Magnetic Intensity SHR (mT) | Material Thickness (mm) | Motor Power (kw) | Belt Velocity (m/s) | Overall Dimensions (L×W×H) (mm) | ||
| RCYD-5 | 500 | 150 | 60 | 80 | 1.5 | 4.5 | 1900*735*935 | ||
| RCYD-6.5 | 650 | 200 | 70 | 150 | 2.2 | 4.5 | 2165*780*1080 | ||
| RCYD-8 | 800 | 250 | 70 | 200 | 2.2 | 4.5 | 2350*796*1280 | ||
| RCYD-10 | 1000 | 300 | 70 | 250 | 3 | 4.5 | 2660*920*1550 | ||
| RCYD-12 | 1200 | 350 | 70 | 300 | 4 | 4.5 | 2900*907*1720 | ||
| RCYD-14 | 1400 | 400 | 70 | 350 | 4 | 4.5 | 3225*1050*1980 | ||
The equipment capacities listed are based on instantaneous sampling of medium hardness materials. The above data is for reference only, please contact our engineers for equipment selection for specific projects.

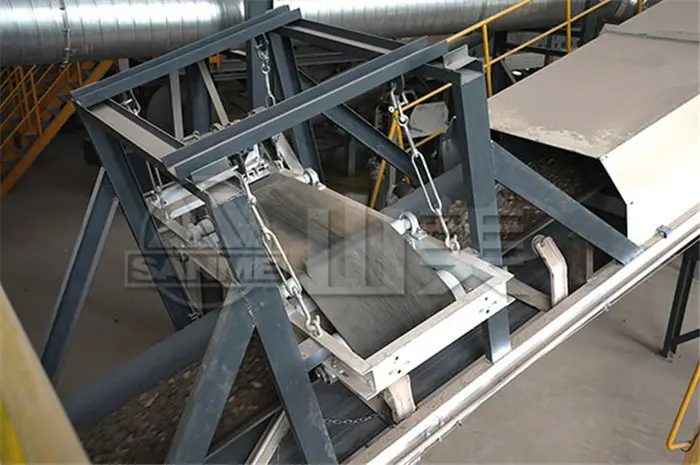

APPLICABLE SCOPE OF RCYB SERIES MAGNETIC SEPARATOR
Removal of iron in non-magnetic materials on belt conveyor, vibrating feeder and blanking chute.

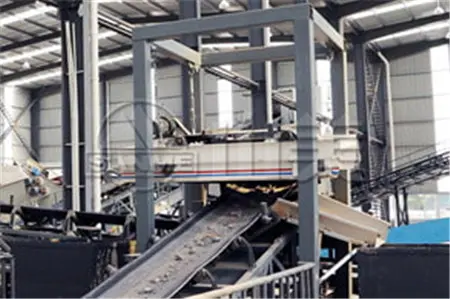

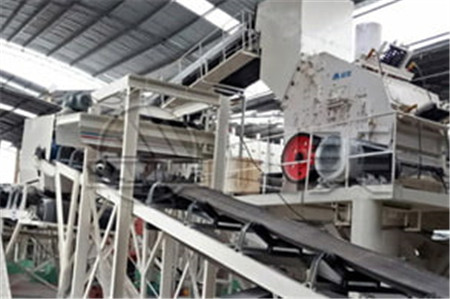

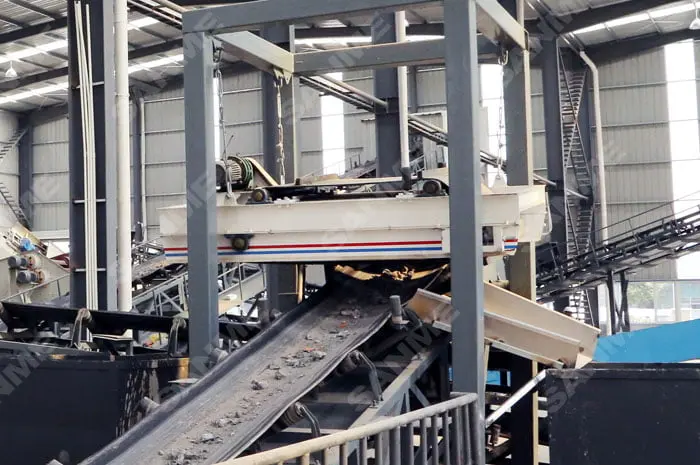

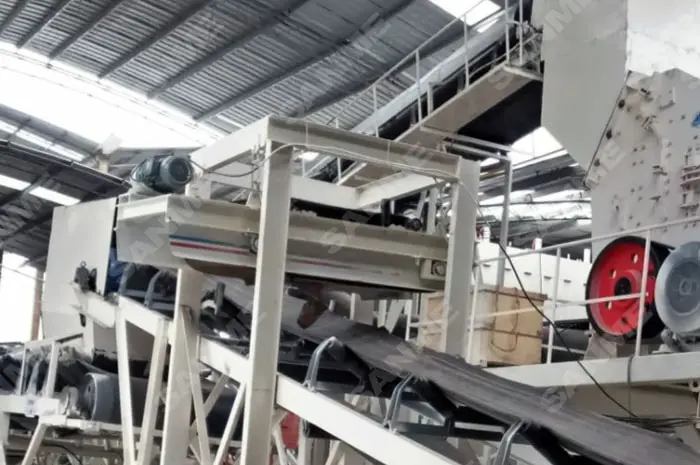

APPLICABLE SCOPE OF RCYD SERIES MAGNETIC SEPARATOR
It is used together with belt conveyor, vibrating feeder, etc; applicable to automatic removal of 0.1-35kg ferro-magnetic materials from moving materials, and extensively applied in cement, metallurgy, mine, glass, coal and other industries.
