150TPH IRON ORE PROCESSING PLANT IN INNER MONGOLIA, CHINA
PRODUCTION TIME
2012
LOCATION
Inner Mongolia, China
MATERIAL
IRON ORE
CAPACITY
150TPH
EQUIPMENTS
SMH Hydraulic Cone Crusher, PE Jaw Crusher, YK Vibrating Screen and ZSW Vibrating Feeder.
project overview

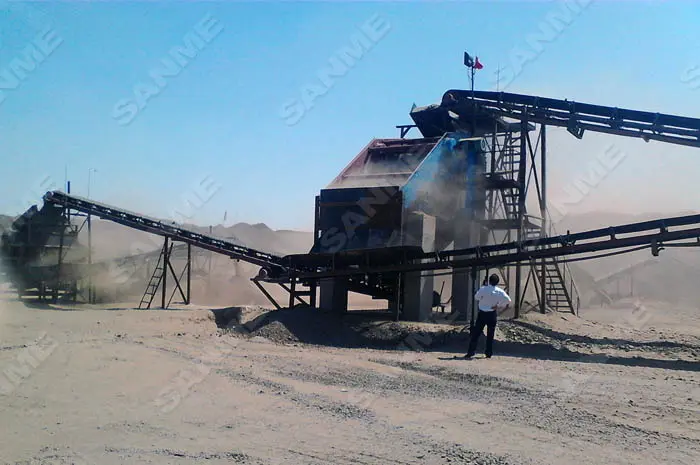

The iron ore is evenly fed into the vibrating feeder, and the vibrating feeder feeds the iron ore evenly into the jaw crusher. The jaw crusher performs the first stage of crushing on the stone, and then the first stage of crushed stone is fed into the cone crusher for the second stage of crushing through the conveyor. The crushed material is graded and screened by the circular vibrating screen, and the unqualified material is returned to the cone crusher for crushing. The qualified finished product is first graded and screened by the circular vibrating screen, and then transported to the finished product area by the belt conveyor.
Equipment Configuration Table
| Product Name | Model | Number | Power(kw) |
| Feeder | ZSW380*95 | 1 | 11 |

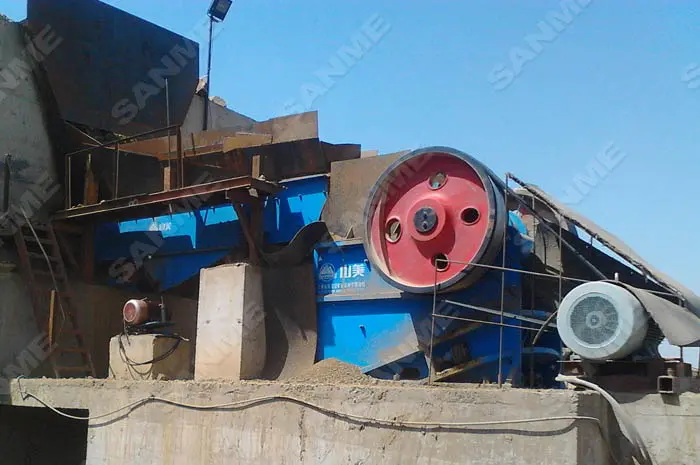

| Jaw Crusher | PE600*900 | 1 | 75 |

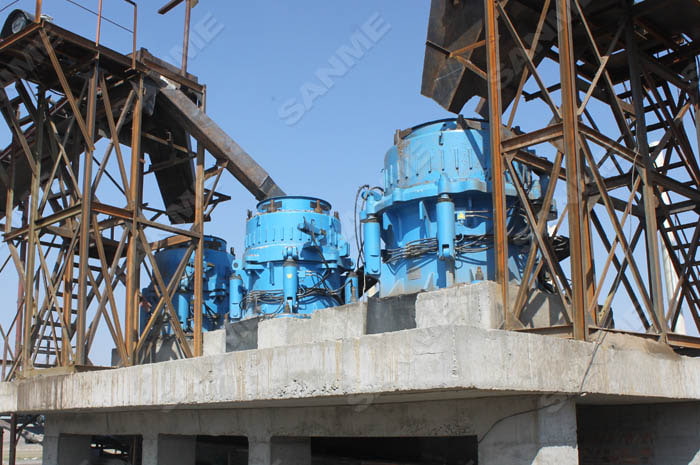

| Hydraulic Cone Crusher | SMH120C | 1 | 90 |
| Hydraulic Cone Crusher | SMH180C | 1 | 160 |

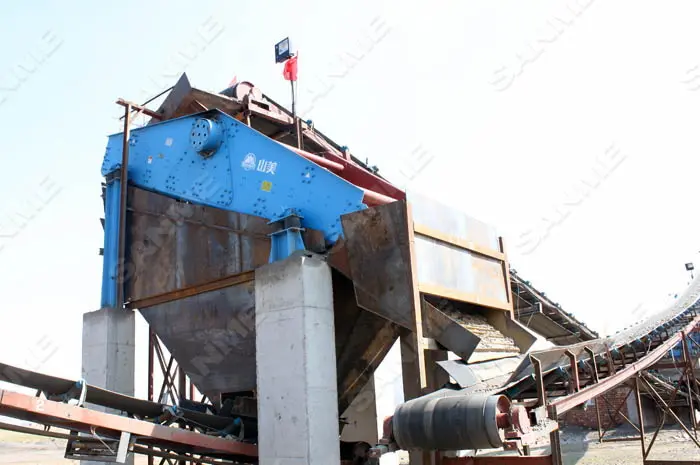

| Vibrating Screen | YK1860 | 1 | 22 |
