270TPH SERPENTINITE CRUSHING PRODUCTION PLANT IN RUSSIA
Russia Aggregates Crushing Turn-key Project, Brand-new design for high-altitude cold area.
project overview
Since the serpentinite ore has large particle size and high hardness, it needs to be crushed by a crusher first. The crusher generally selected is a jaw crusher, which is mainly used as a coarse crushing equipment for serpentinite. This equipment has a large processing capacity and is not easy to be blocked in the production of serpentinite.
In the crushing production, the machine has low energy consumption and low wear, so the cost investment in production is low;
In the serpentinite grinding production line, in addition to the use of crushers, some auxiliary production equipment is also required, such as feeders, elevators, conveying equipment, etc.
These different types of auxiliary equipment, although they will not directly process the materials, are also of great help to the production of serpentinite. When choosing, pay attention to the matching of models and quality issues;

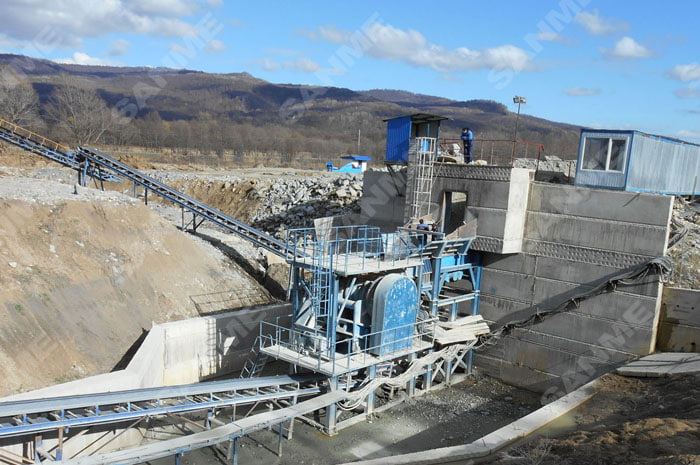

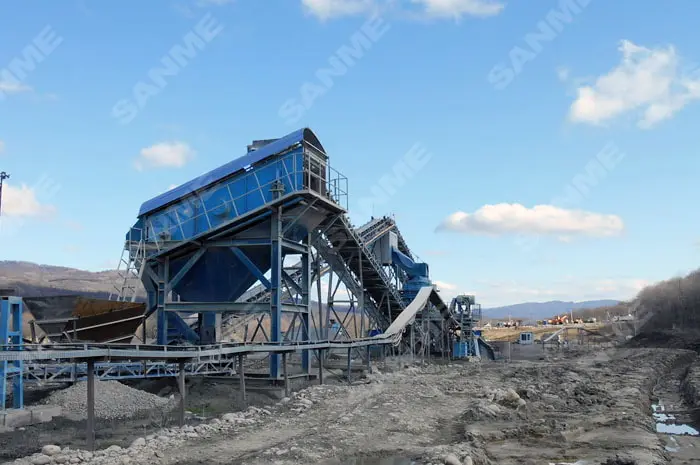

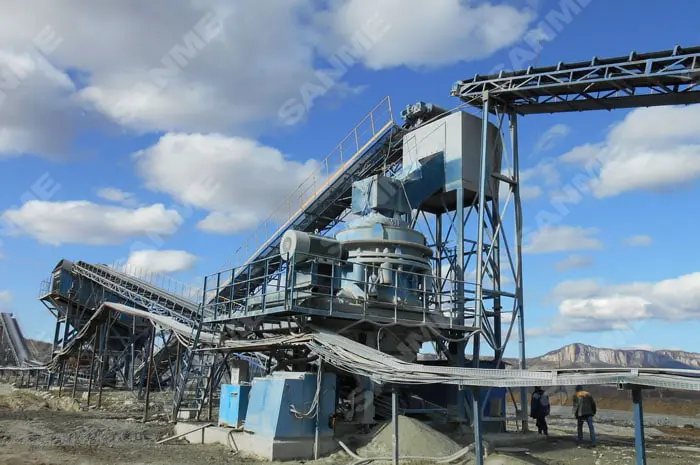

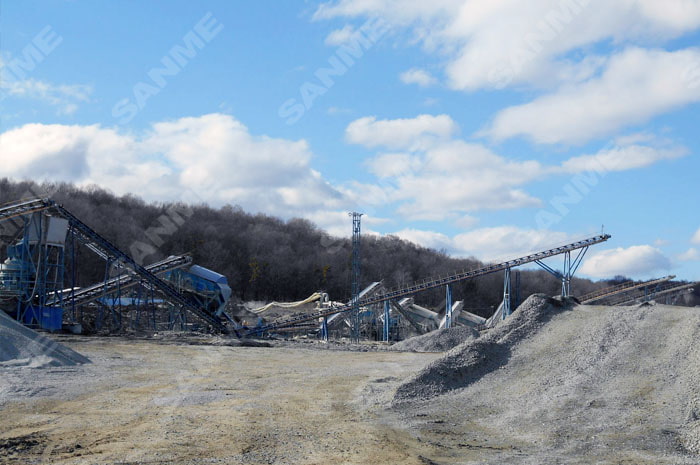

The 270-ton-per-hour serpentine sand production line in Russia was built by SANME. The main equipment includes jaw crusher, cone crusher and VSI sand making machine.
Since the serpentinite ore has large particle size and high hardness, it cannot be directly processed by a grinding machine. It needs to be crushed by a crusher first. The crusher generally selected is a jaw crusher, which is mainly used as a coarse crushing equipment for serpentinite. This equipment has a large processing capacity and is not easy to be blocked in the production of serpentinite. In the crushing production, the machine has low energy consumption and low wear, so the cost investment in production is low;
Equipment Configuration Table
| Product Name | Model | Number | Power(kw) |
| Vibrating Feeder | ZSW600*130 | 1 | 22 |
| Jaw Crusher | PE900*1200 | 1 | 110 |
| Cone Crusher | SMH350EC | 1 | 250-280 |
| Vertical Impact Crusher | VSI9000 | 2 | 440-630/台*2 |
| Inclined Vibrating Screen | ZK2160 | 2 | 2*18.5 |
| Inclined Vibrating Screen | 2YK2460 | 2 | 2*30 |
