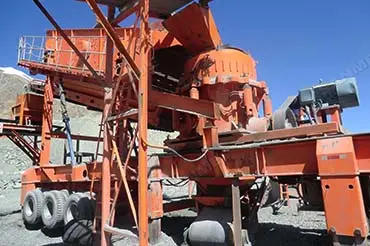

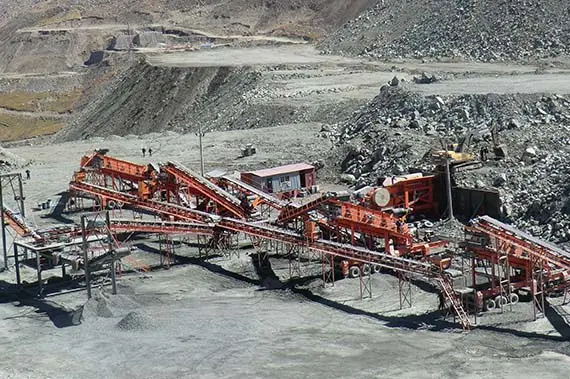

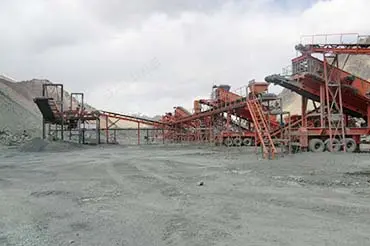

300T/H MOBILE IRON ORE CRUSHING AND SCREENING PRODUCTION LINE IN SINKIANG
SANME engineers analyze the possible influence on air, water, sound, solid waste, ecological and other environmental problems in detail, and put forward corresponding protection measures. Finally, we settle down a comprehensive feasible plan.It has proved that evaluating the potential environmental influence before exploiting iron mine is an effective way to reduce mining cost.
project overview
1. Large pieces of iron ore are evenly fed into the jaw crusher (crusher) through the silo by the vibrating feeder for coarse crushing; the coarsely crushed iron ore is screened by the vibrating screen and then sent to the hydraulic cone crusher by the belt conveyor for fine crushing; 2. The 0-12 mm iron powder screened by the vibrating screen is evenly fed into the ball mill for grinding, and screened by the spiral classifier. The iron powder that does not meet the requirements is sent to the ball mill for further grinding; 3. The iron powder that meets the requirements of mineral processing is sent to the magnetic separator for strong magnetic separation and magnetic separation to remove impurities; the obtained iron powder is sent to the dryer for drying to obtain iron concentrate.
Equipment Configuration Table
| Model | Product Name | Number |
| ZSW600x1200 | vibrating feeder | 1 |
| PE900x1200 | jaw crusher | 1 |
| SMH250C | cone crushers | 2 |
| SMH250CF | cone crushers | 2 |
