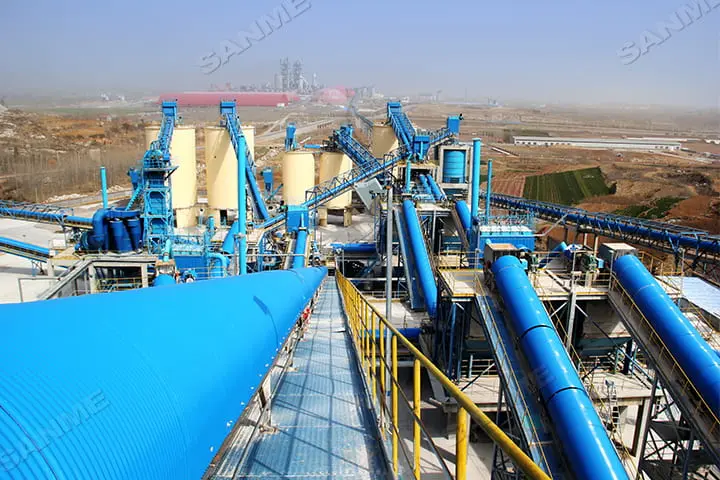

DETAILS OF LIMESTONE GRAVEL PRODUCTION LINE WITH 500-550 TONS PER HOUR
DESIGN OUTPUT
500-550TPH
MATERIAL
Coarse, medium and fine crushing of medium and soft rocks such as limestone, dolomite, marl, tuff, sandstone and clinker
APPLICATION
Chemical, cement, construction, refractories and other industrial sectors for coarse crushing, medium crushing and fine crushing of all kinds of medium hardness materials.
EQUIPMENTS
Vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor
BASIC PROCEDURE

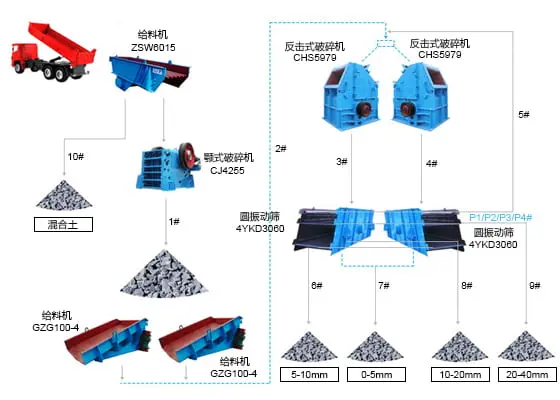

First, the stones blasted from the mountain are evenly fed into the jaw crusher through the feeder for initial crushing, and the semi-finished products after coarse crushing are transported to the impact crusher through the belt conveyor for further crushing.
The stones after secondary crushing are transported to the vibrating screen through the belt conveyor to screen out stones of different specifications.
The stones that meet the customer's particle size requirements are transported to the finished product pile through the belt conveyor, and the stones larger than the upper screen size are returned to the impact crusher for crushing again through the belt conveyor, forming a closed circuit circulation.
| serial number | name | type | power(kw) | number |
| 1 | vibrator feeder | ZSW6015 | 30 | 1 |
| 2 | jaw crusher | CJ4255 | 200 | 1 |
| 3 | hanging feeder | GZG100-4 | 2x2X1.1 | 2 |
| 4 | impact crusher | CHS5979 | 2x440 | 2 |
| 5 | vibrating screen | 4YKD3060 | 2x30x2 | 2 |
| serial number | breadth(mm) | length(m) | angle(°) | power(kw) |
| 1# | 1200 | 27 | 16 | 30 |
| 2# | 1200 | 10+27 | 16 | 37 |
| 3/4# | 1200 | 24 | 16 | 22 |
| 5# | 800 | 20 | 16 | 11 |
| 6-9# | 650 (four) | 15 | 16 | 7.5x4 |
| 10# | 650 | 15 | 16 | 7.5 |
| P1-P4# | 650 | 10 | 0 | 5.5 |
Note: this process is for reference only, all the parameters in the figure do not represent the actual parameters, the final result will be different according to different characteristics of stone.
