DETAILS OF PEBBLE SAND PRODUCTION LINE WITH OUTPUT OF 150-200 TONS PER HOUR
BASIC PROCEDURE
There are many cobblestone resources in China, and the situation varies from place to place. Therefore, when configuring equipment, the wear resistance of the solution should be placed in the main position. Large particle size can refer to the crushing of granite and basalt;
Small particle sizes need to be pre-screened to reduce production costs;

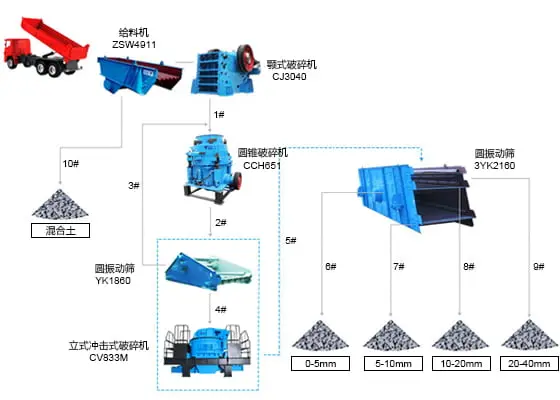

Take pebbles below 200mm as an example: the material is transported to the 1 # vibrating screen in the raw material bin by the feeder and belt conveyor for pre-screening, the material larger than 40mm enters the cone crusher, 5-40mm enters the vertical impact crusher for crushing, and 0-5mm enters the sand washing machine for cleaning and directly produces the finished product. After cone crushing, the product is screened by 2 # vibrating screen, and the product larger than 40mm is returned to the cone crusher and crushed again to form a closed-circuit cycle, and the product smaller than 40mm enters vertical impact crushing. Vertical impact fracture material is screened by 3 # vibrating screen
| serial number | name | type | power(kw) | number |
| 1 | Vibrating feeder | ZSW4911 | 15 | 1 |
| 2 | Jaw crusher | CJ3040 | 110 | 1 |
| 3 | Cone crusher | CCH651 | 200 | 1 |
| 4 | Vibrating screen | YK1860 | 15 | 1 |
| 5 | Vertical impact type breaking | CV833M | 2X160 | 1 |
| 6 | Vibrating screen | 3YK2160 | 30 | 1 |
| Serial number | width(mm) | length(m) | angle(°) | power(kw) |
| 1# | 800 | 24 | 16 | 11 |
| 2# | 800 | 22 | 16 | 11 |
| 3# | 650 | 22 | 14 | 7.5 |
| 4# | 800 | 21 | 16 | 11 |
| 5# | 800 | 26 | 16 | 15 |
| 6-9# | 500（four） | 20 | 16 | 5.5X4 |
| 10# | 500 | 15 | 16 | 4 |
